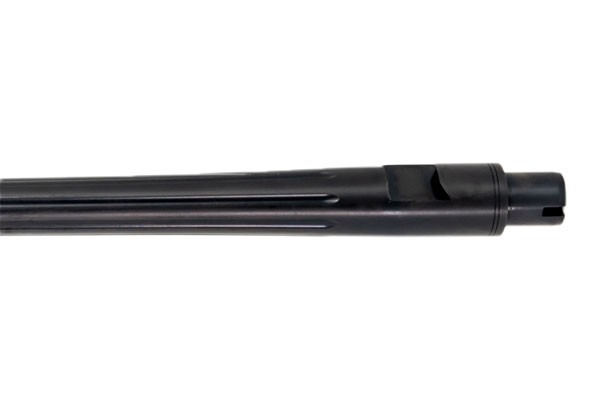

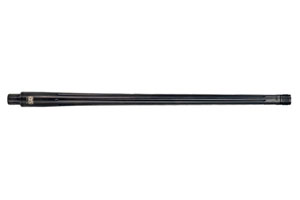

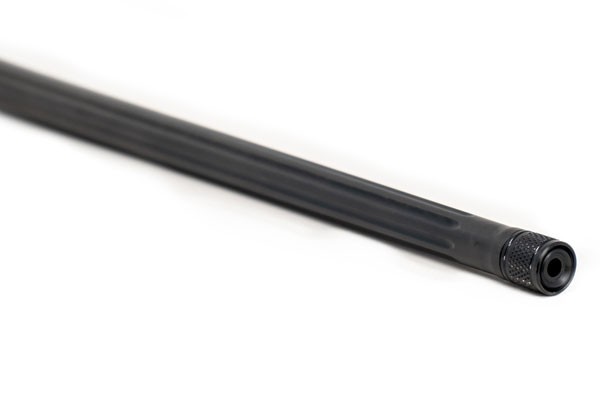

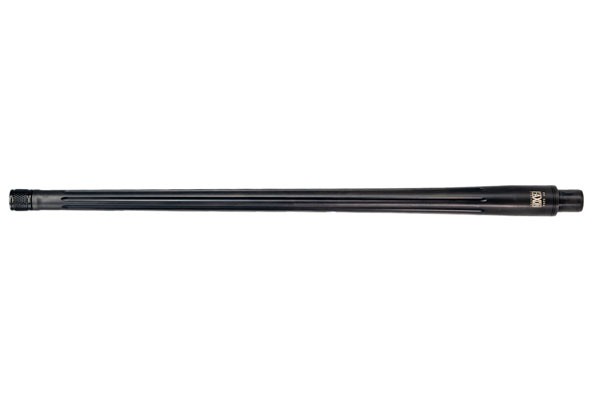

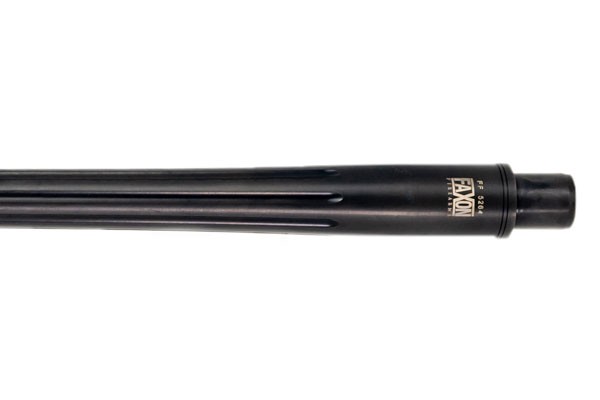

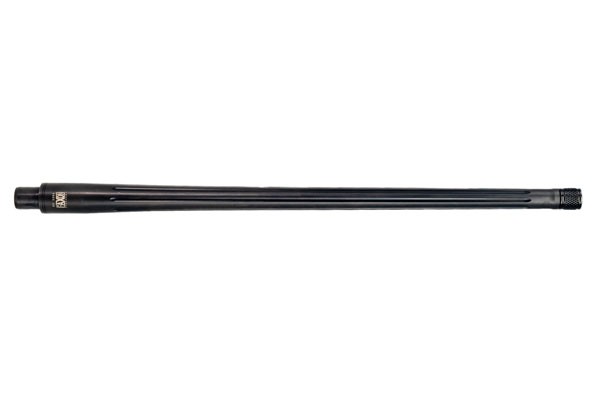

Faxon Firearms barrels are the pinnacle of value. As with all Faxon Barrels, the "Faxon Rimfire" line is made in-house at their Cincinnati facility from raw bar stock and undergoes the same rigorous testing and quality control measures that have made the Faxon AR and pistol barrels a market favorite.
These barrels are made from 416-R stainless steel, given 6 Groove Rifling at a 1:16 twist, and a Recessed Target Crown. Barrels are Magnetic Particle inspected and are finished in Salt Bath Nitride.
Faxon Rimfire barrels offer weight savings to typical factory barrels for 10/22.
- Standard Factory Barrel: 1.78 lbs
- Faxon Rimfire Pencil Barrels: 1.0 lbs
- Faxon Rimfire Fluted Barrels: 1.4 lbs
Features:
- Barrel Material: 416-R Stainless
- Barrel Caliber: .22 LR
- Barrel Chamber: .22 LR Sporting
- Barrel Profile: Straight Fluted
- Barrel Twist: 1:16
- Barrel Length: 16"
- Barrel Finish: Salt Bath Nitride
- Rifling: 6 Groove
- Target Crown: Recessed
- Compatibility: 10/22, non-takedown
- Taper:
- 0.912" after chamber
- 0.586" before thread shoulder
- Muzzle Thread: 1/2-28 TPI
- These Faxon Rimfire barrels for 10/22 come with 0.625" long threads. Each barrel ships with an included adaptor ring that should be used with any muzzle device or suppressor that is short-threaded (0.400") for rimfire.
- Weight: 1.4 lbs
- Made in the USA
