Remington 700 Short Action Bravo Chassis Sako Green by KRG

Remington 700 Short Action Bravo Chassis Sako Green by KRG
Bravo Chassis by KRG Bravo Chassis by KRG Bravo Chassis by KRG

(0 reviews)

SKU
BRVO-R7S-GRN
Quantity in stock
No items available
Weight
80.00 oz
Your price:
$349.00
Qty Out of stock
Click here to subscribe for 'Back-in-stock' notifications

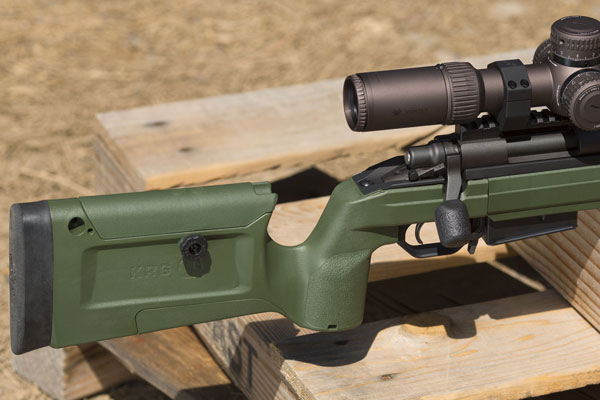

The Bravo Chassis is one of the most comfortable stocks available. The precisely machined bedding area will put your action in its happy place nearly like it was custom bedded in there. The full length stiff aluminum backbone will not allow the forend to flex on you but does allow design modularity with loads of accessories. The ergonomic adjustments are just what you need to fit your frame so you can pull off the difficult shots. It takes AICS mags right out of the box.

It's light. It's comfortable. It's modular. It's good looking.

Bravo Chassis Forend:

  • Polymer for light weight and to eliminate heat transfer to/from the shooter's hand
  • Mounting holes at various positions will take L2 Picatinny rails, Tripod Mount, Barrier Stop, etc
  • M-LOK slots in sides and bottom of forend for universal accessories mounting
  • Access hole for action mounting screw, so you can remove the action without removing forend

"Backbone"/Chassis:

  • Full length aluminum backbone from the action to the tip of the forend
  • Radius bedding system which is CNC'd into aluminum for consistent contact between action and chassis
  • Can accommodate some thicker aftermarket recoil lugs, larger ones will require inletting
  • Accepts the Whiskey-3 gen 3+ Spigot Mount
  • Mounting holes at various positions will take L2 Picatinny rails, Tripod Mount, Barrier Stop, etc
  • Designed for 5 or 10 round AICS magazines
  • Will accept any barrel contour up to 1.15" straight cylinder.  (Will take standard 1.25" barrel shank and have clearance for that diameter out to about 4" past action face)

Trigger Guard/Mag Catch:

  • Molded or machined light weight trigger guard
  • Will accept the new X-Mark triggers and nearly all aftermarket triggers but some aftermarket triggers may require modifications to the trigger or chassis (Tubb 2 stage trigger will not work)
  • Optional mag catch extender button available accessory

Cheekpiece/Handgrips:

  • Iinfinitely adjustable within range (1" travel)
  • Can be quickly removed and re-installed, uses a clamp and thumbscrew design
  • Made of polymer to not transmit heat to or away from your face

Length of Pull (LOP):

  • Adjustable with spacers in 3/8" increments with nearly 2 1/4" of adjustment range
  • LOP range varies slightly between versions but is roughly 12.8" to 15" (longer length is possible with additional optional spacers)
  • Includes the KRG 1-3 LOP kit which includes 3 spacers and the hardware to mount either 1, 2, or 3 allowing a max LOP of about 14"

Buttstock:

  • Very strong reinforced polymer material
  • Mounting points for external QD cups
  • Built in thumbshelf for same-side-thumb-grip shooter
  • Can be configured with a continuous angled lower surface or a butthook configuration
  • Modularity with X-ray and Whiskey-3 back ends, either of those will fit on Bravo and vice versa

Recoil Pad:

  • Premium KRG designed pad that is light, durable, and comfortable to shoot
  • Remington 700 pattern so user can install aftermarket pre-fit pads if preferred

Mounting features for slings, monopods, etc:

  • Forend has M-LOK slots on each side and bottom along with other holes for mounting KRG accessories
  • Buttstock has one position on each side for external QD cup
  • Buttstock includes angled cover with the "Butthook" cover sold separately
  • Harris bipod stud included on forend
  • Spigot Mount can be added to front of chassis
  • Ambi QD sling plate can be mounted and provides 3 positions for QD sling or HK hook sling attachments (optional accessory)

Materials/Finishes:

  • Aluminum parts are hard anodized Type III
  • Nearly all fasteners are stainless steel, some with black oxide coating, some without
  • Steel parts are salt bath nitrided or stainless steel
  • Forend and buttstock are injection molded reinforced polymer
  • Weight 2.9 lbs without magazine
