Tikka T1x Billet Magazine Lever

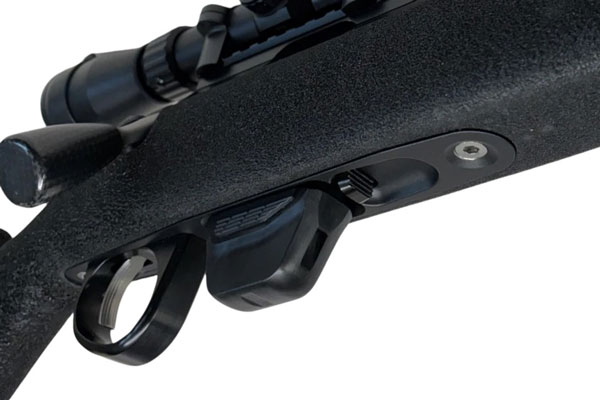

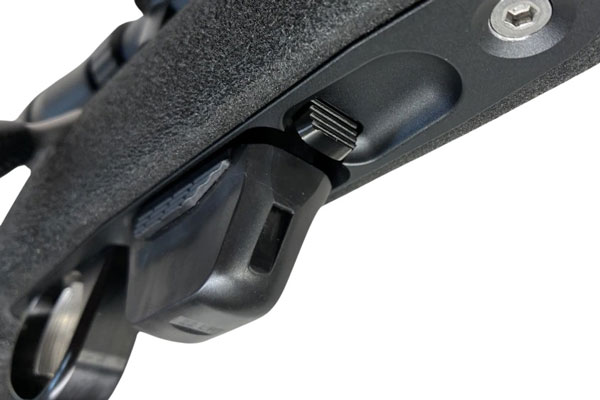

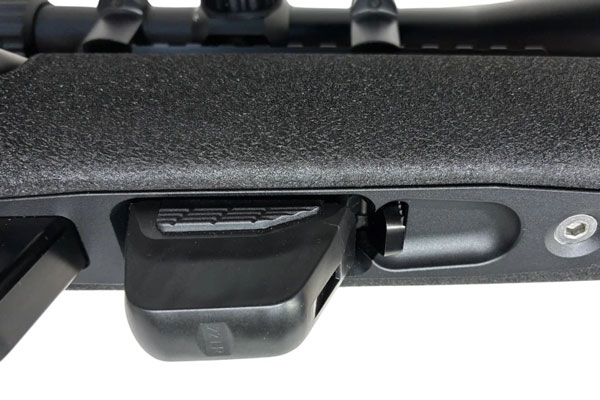

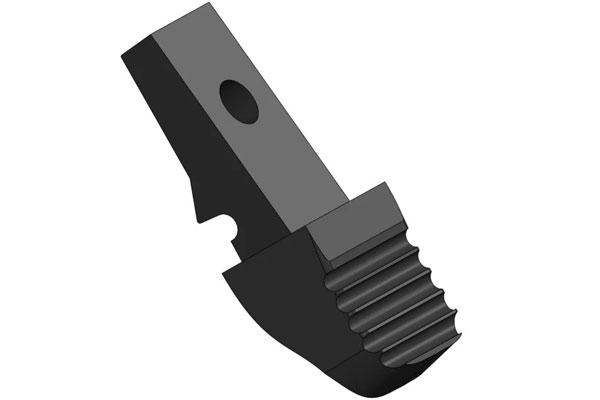

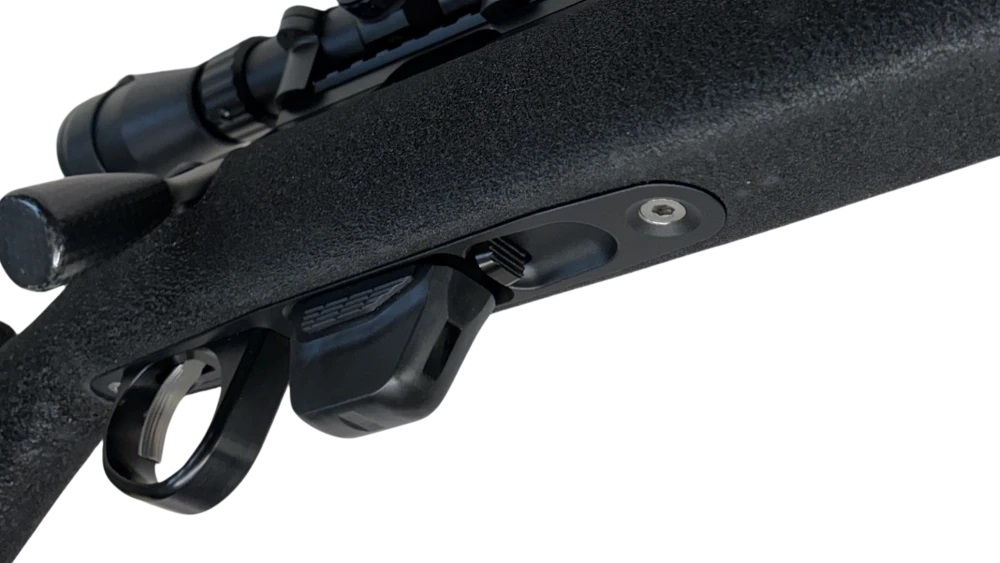

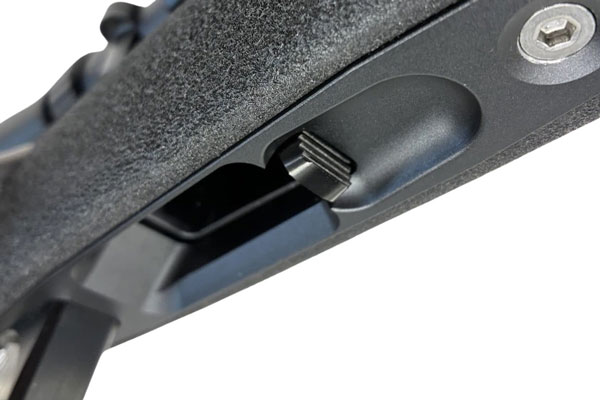

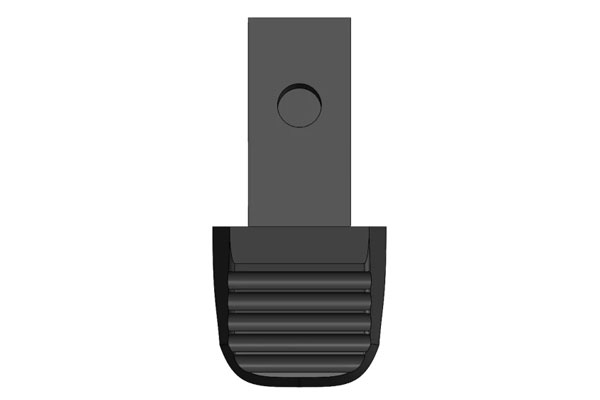

The Tikka T1x Billet Magazine Lever removes another piece of plastic that doesn't belong on these fine rimfire rifles. The magazine release levers are CNC machined from one piece of pre-hardened 17-4 grade stainless steel, then PVD coated black. They are machined to precise dimensions so they function with the factory-pattern magazines exactly as they should. The coil spring and dowel pin are also included. The design sits 4.25mm lower than the plastic lever, and has 5 very tactile serrations milled with a ballnose cutter.

Notes:

• The spring in the Lumley kit is coiled specifically for the weight of the magazine lever;  do not re-use the factory spring during installation, as it is not compatible.
• Lumley designs the levers for a tight, no-rattle magazine lock up
• Test magazine function upon reassembly and test with different magazines, if available
• Fits both right- and left-handed rifles
• Fits both the factory chamberings of 22LR and 17HMR

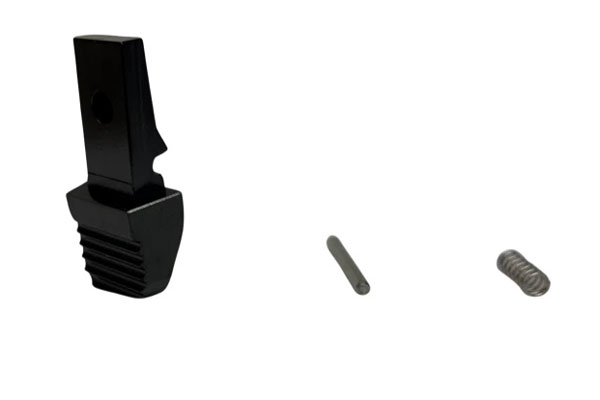

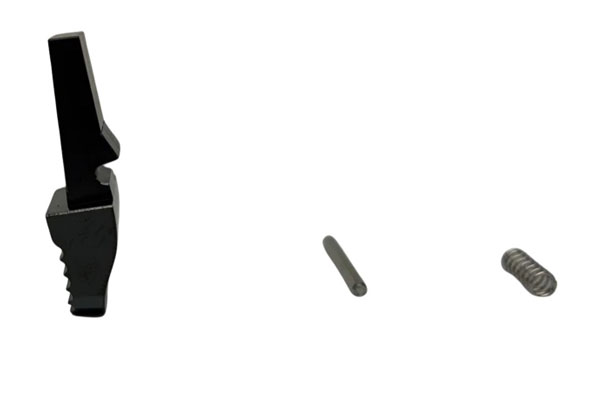

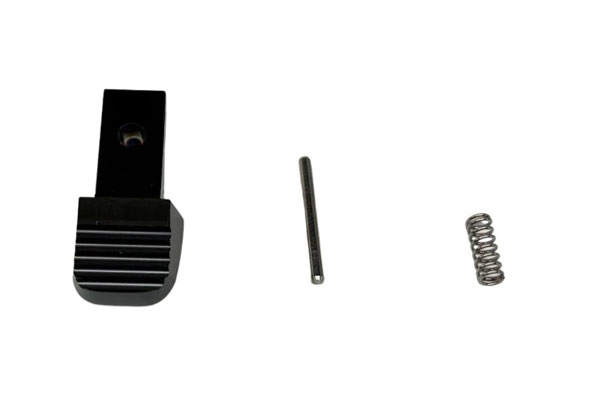

Includes:

• 1x magazine lever
• 1x magazine lever coil spring
• 1x dowel pin

Construction:

• Magazine Lever: 17-4 stainless steel, hardness ~30 HRC, PVD coated
• Magazine Lever Coil Spring: music wire, zinc plated
• Dowel Pin: 304 stainless steel
• Weight = 0.41oz (11.6g)
