Tall Rail Mounted Adjustable Bag Rider by Long Shot Precision

Tall Rail Mounted Adjustable Bag Rider by Long Shot Precision
Barrett Adjustable Bag Rider by Long Shot Precision Barrett Adjustable Bag Rider by Long Shot Precision Barrett Adjustable Bag Rider by Long Shot Precision Barrett Adjustable Bag Rider by Long Shot Precision Barrett Adjustable Bag Rider by Long Shot Precision Barrett Adjustable Bag Rider by Long Shot Precision Barrett Adjustable Bag Rider by Long Shot Precision Tall Rail Mounted ABR by LSP Tall Rail Mounted ABR by LSP Tall Rail Mounted ABR by LSP Tall Rail Mounted ABR by LSP

(0 reviews)

SKU
TRM-Short-ELR
Quantity in stock
2 item(s) available
Weight
20.00 oz
Your price:
$279.98
Model
Dowels
Quantity (2 available)
Click here to subscribe for 'Back-in-stock' notifications
Click here to be notified when this item is nearly out of stock

The Adjustable Bag Rider (ABR) is made locally and assembled in the USA. Made out of the highest quality American aluminum, CNC made and anodized for superior wear resistance, the ABR is made to last and weighs less than a pound. The custom dowels come in either hardened alloy steel or stainless steel and ride in linear bearings for consistent smooth operation. A custom-designed SS thumb wheel rides in two Delrin thrust washer that are known for their strength and creep resistance. The ABR replaces the need for expensive, heavy, and bulky adjustable front rests and wobbly monopods. It is the only bolt-on enhancement that provides vertical adjustment while providing horizontal stability without requiring positional body changes. Installation is simple, quick, and you never need to remove it.

The Tall Rail Mounted Adjustable Bag Rider (Patented) is a direct bolt-on application designed to clamp to the lower Picatinny rail on the MRAD, MK22, and M98 (newer models) and others listed below. The rear stock must look like the provided picture above. The ABR has about 0.95" of travel with the short dowels and ships with the Rail Clamp and 10-32 bolts (torque to 18 inch-pounds with a 5/32" allen wrench). The slots in the ABR are tight.

Long Shot Precision recommends 2.25" minimum between the front of the ABR and the back of the grip so a more vertical grip is recommended. See the LSP Precision Vertical Adjustable Grip here.

Bolt On Applications:

  • MRAD, MK22, M98 - (short dowels)
  • M98 - Must have a Picatinny rail and NOT a built in monopod
  • Woox Furiosa - (short dowels) see picture

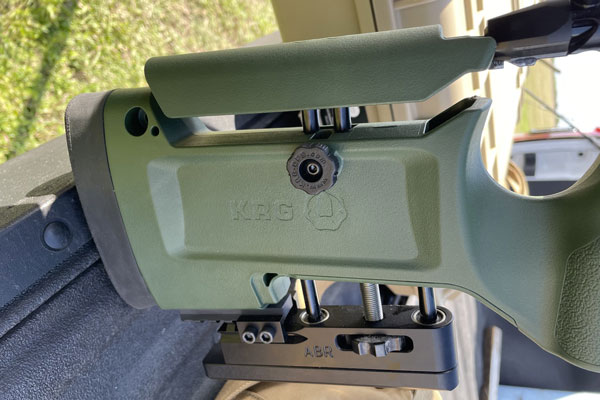

  • KRG Bravo - (short dowels) Picatinny rail from KRG needs to be attached. See picture.

Modifications required:

  • XRS - (short dowels) clearance into above stock is needed. see picture.
  • Seekins Havak HIT - minor dremel work required to open the lower slot for rear dowel clearance. see picture.

Features:

  • CNC'd American 6061 Aluminum
  • Class II Anodizing
  • Clamp to lower Picatinny rail
  • Unequaled ease in vertical adjustment in micro intervals
  • No need to purchase expensive and/or heavy front rests
  • Rock solid horizontal stability - no wobble
  • Reduced load development time
  • No more squeezing a bag - reduces vertical dispersion
  • Faster follow up shots
  • Straight tracking
  • Includes Rail Clamp and 10-32 bolts - torque to 18 inch-pounds
  • Weighs less than 16 ounces

Caliber Restrictions:

  • .338 and smaller will use the Standard Dowels
  • .33XC and larger need the Hardened Dowels
  • PRS and Military use needs Hardened Dowels

The two lower riders (ELR bottom or V bottom) are designed to provide optimal performance when used with a rear bag with ears. No need for positional changes to the rifle and body which cause point of impact inconsistencies. Say goodbye to the mound of expensive and heavy equipment you take to the range. Whether you plan to go to the bench or want to take a shot in the field you are guaranteed to have previously unattainable stability and micro-adjustment with you at all times!

The ABR is designed to work with a rear bag and any bag or sand sock can be used - but a bag with ears works best. Bags with bunny ears allow full access to the thumb wheel at all times. If a heavy leather bag is used and there is space in between the ears and the rider the groups will be horizontal. If there is a space, remove the ABR from the bag and, pushing down with your thumb on the top of the ears to shrink the space between the ears. if all space cannot be removed a shim can be tested. For example, lay a piece of leather across the top of the ears and push the ABR down on top of it.

Long Shot Precision (LSP) has worked closely with the Protecktor Model company to develop the "round back" rear shooting bags. These bags have been collaboratively designed for use with the ABR to maximize clearance from the thumb wheel to the front of the bag ear. We recommend you call Protektor Model and let them know which ABR you've purchased and the height you need and they will guide you to the best Round Back Bag.



**Do NOT lower the rider past the dowels being level with the top of the ABR. Please note that this product does NOT fit the Ruger Precision Rimfire Rifles without some modification.

**Please allow a week before shipping in some cases.

Non-Affiliation Disclaimer: LSP is not affiliated, associated, authorized, endorsed by, or in any way officially connected with the Barrett Firearms Manufacturing brand.
