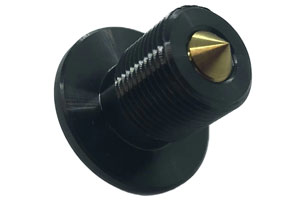

Savage Titanium Bolt Lift Kit by Lumley Arms

Reduce your bolt lift weight by reducing the bearing surface between the BAS and cocking piece sleeve. The Lumley kit differs from the others by using the best materials and coatings available achieving a high hardness and corrosion resistance coupled with weight reduction.

This Bolt Lift Kit was manufactured for pre-2019 Savage short or long action models with the "Old Style" firing pin where the cocking indicator doesn't protrude through the BAS.

Features:

• Available in 2 colors
• Grey - Ti6Al4V Titanium alloy with a glass bead-blasted finish
• Black - Ti6Al4V Titanium alloy with a DLC coating (PVD)
• Set Screw and Disc - 17-4 Stainless Steel furnace hardened to 30 HRC then TiN coated (PVD)
• The length of the BAS has been dimensioned to accommodate both the set screw and disc to remove pressure on the firing pin assembly
• Weight: 0.57oz (16.2 grams)
• BAS hex socket: 1/8" hex key
• Set Screw hex socket: 1/4" hex key
• Includes: (1) BAS, (1) set screw, (1) disc

Fitting guide:

Minimum tools required are 1/4" and 1/8" hex keys. Please refer to the image gallery for the exploded diagrams of where these components fit within the bolt assembly, if in doubt we recommend having a gunsmith fit the kit.  Holding the bolt firmly with the BAS facing upwards in a padded vice is the easiest method. Be aware of the spring pressure before unscrewing the BAS. We recommend applying a small amount of bolt lug grease or similar viscosity grease to the BAS threads prior to installation and decoding the bolt first then recocking following reassembly. Lumley supplies the kit with the set screw installed into the BAS in the recommended position however it can be adjusted by using a 1/8" hex key, including after the bolt is fully assembled and inserted into the rifle.
