Savage Titanium Threaded Bolt Handle

As of February 2026, this style handle has been discontinued by Lumley. They are available only while supplies last.

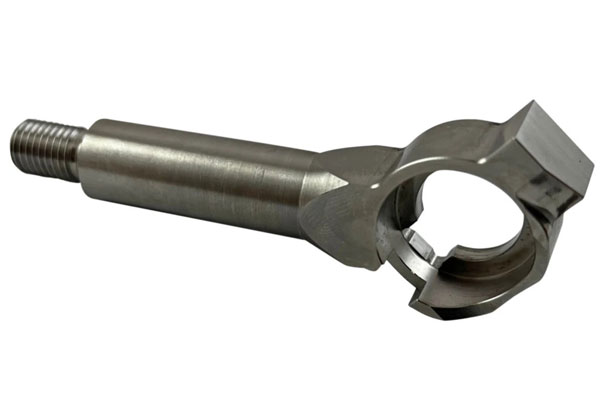

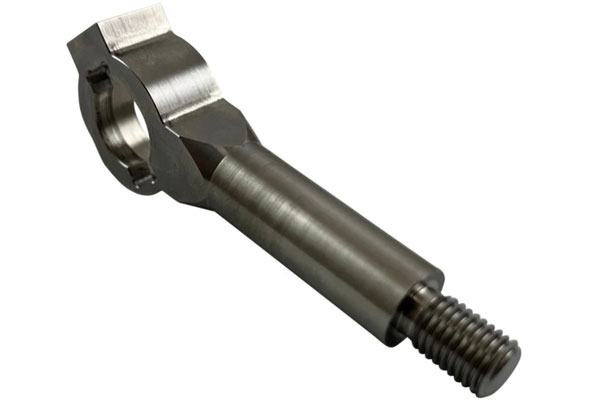

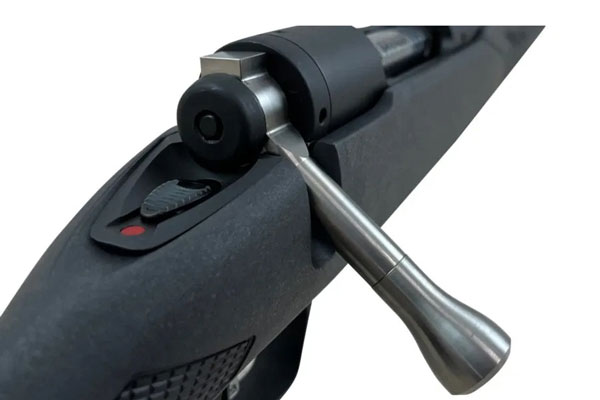

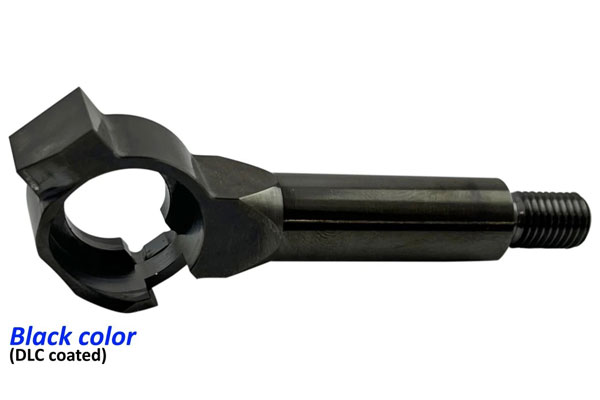

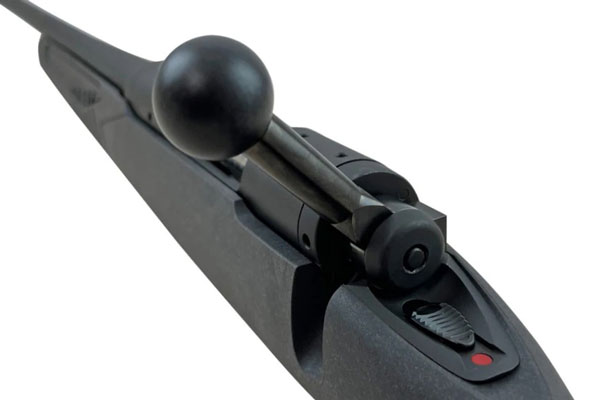

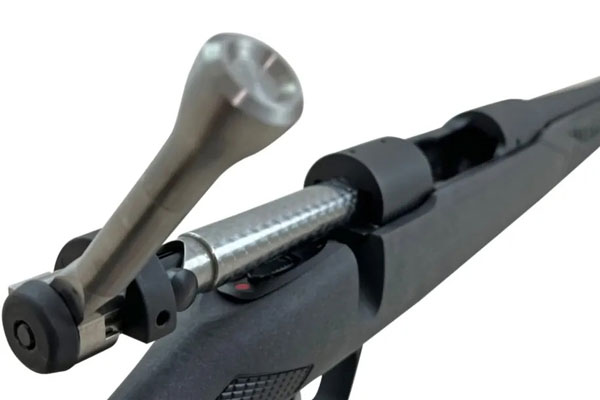

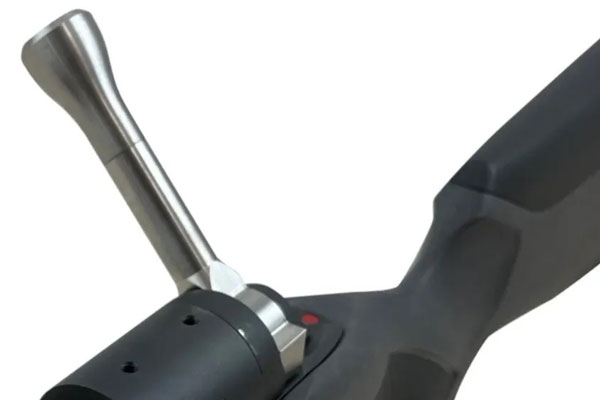

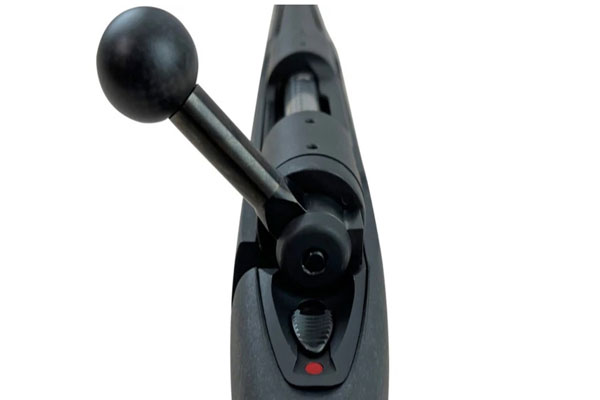

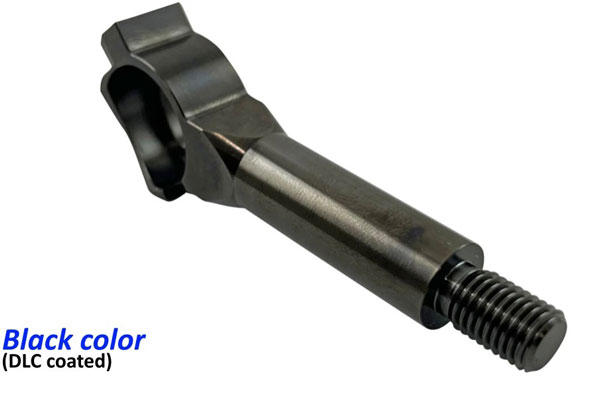

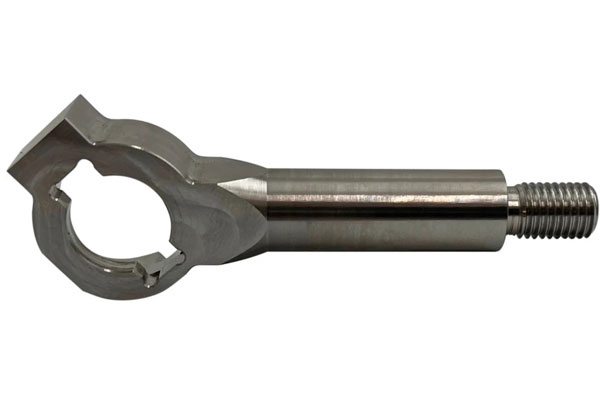

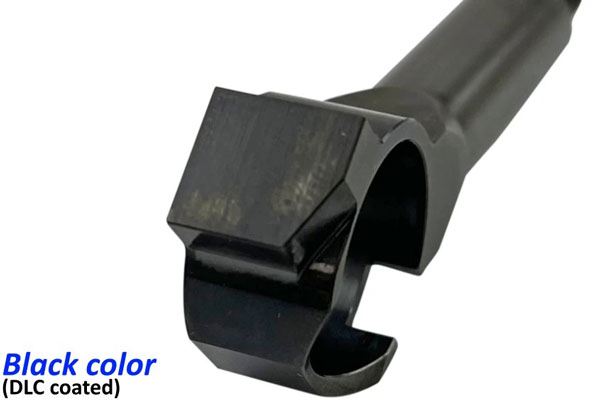

A fully CNC-machined and EDM wire-cut bolt handle for Savage Centerfire models. Made from the best grade 5 titanium alloy (Ti6Al4V) - no other rifle benefits more in weight savings by replacing the original factory handle. Lumley's standard titanium handles combined with a Lumley knob can be over 70% lighter without making any compromises on strength, finish, or quality. Available in two options, either as machined (silver color) or with a tough DLC black coating (gloss black). When combined with the Lumley titanium bolt body and titanium BAS (2019+ models) or titanium bolt lift kit (pre-2019 models), substantial savings in weight can be achieved.

Features:

• Grade 5 Titanium Alloy
• One piece CNC machined
• Thread pitch: 5/16"-24tpi
• Thread length 0.5"
• Weight: 0.95 oz
• Fits both Round Back and Flat Back actions
• Does NOT fit the Savage Axis

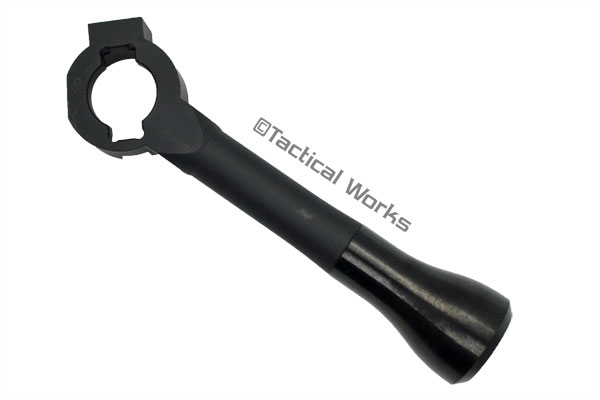

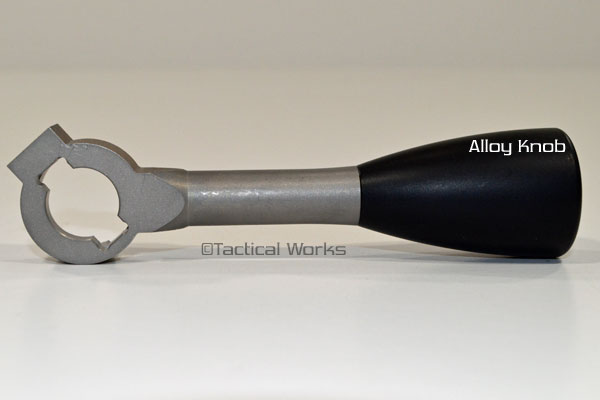

Handle ONLY. Bolt knob sold separately. Some bolt knob options: Alloy, Carbon Fiber Intermediate, Titanium Intermediate, Carbon Fiber Oversized.

Some fitting may be required

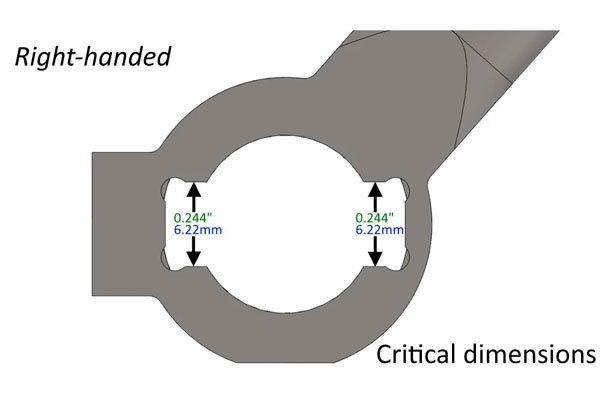

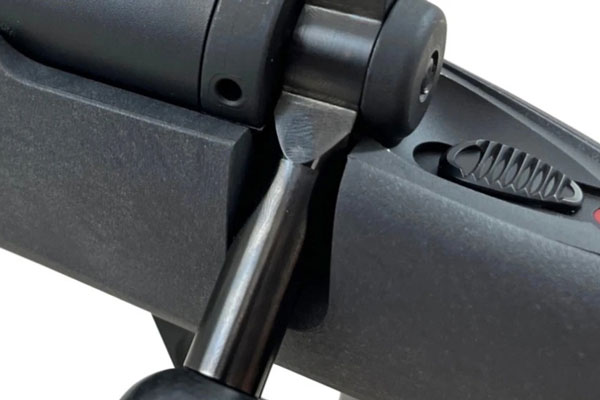

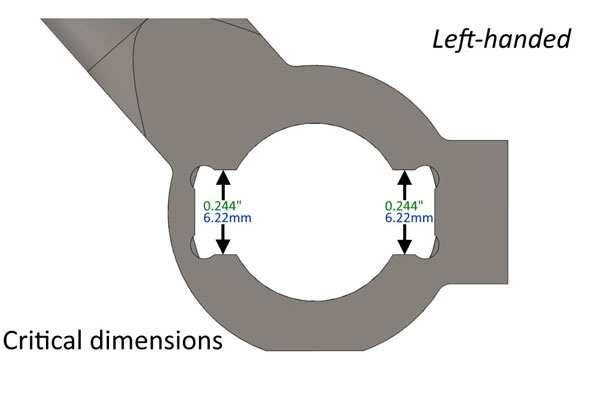

With so many models and sub-models of different vintages, including more recently available aftermarket bolt bodies, Lumley has found that the dimensions between individual Savage rifles can vary. All Lumley Savage handles are machined as a "tight fit" only as indicated in the last diagram in the image gallery. Some modification to these dimensions may be required when fitting, depending on the tab measurements of your rifle's bolt body. To determine whether your bolt will fit the handle without modification, measure the two tabs at the end of your bolt body marked by the arrows in this photo using vernier calipers. Anything equal to or below 0.244" (or 6.22mm) will fit. If it is over, the handle needs to be slightly enlarged (hand filing) to fit. Be aware the handles are manufacutred with a very durable stem diameter of 0.447" (11.35mm) and there is no scallop like that of the factory Savage handles to accommodate clearance required for rifle scopes which may be sitting in low rings or otherwise have larger diameter oculars/scope tubes. The handles cannot be bent, and it is recommended to install higher rings and/or bases to remedy any clearance issues.

Fitting Guide
The handles are secured to the rear of the bolt body by a Bolt Attachment Screw (BAS) - fixed using a 1/4" hex head. Firmly secure your bolt in a wall-padded vise. The existing handle can be removed from the bolt body by turning this screw counter-clockwise. Once removed, the titanium handle will slot into place. If your bolt body dimensions are larger than usual, some trimming of the collar will be required (detailed above). A small fine file is best for this purpose. Apply a small amount of quality bolt grease to any surface modified along with the threads before reassembly.
