Savage Titanium Recoil Lug (AccuStock and AccuFit compatible)

Savage Titanium Recoil Lug - AccuStock and AccuFit stock compatible

For Short and Long Action Savage models including the 10,110, 11, 111, 12, 14, 114, 16, 116, and Stevens 200

The Lumley Titanium Recoil Lugs are flatter, thicker, and stiffer than the factory lug and prove a more secure fit into the aluminum bedding spine of the Savage AccuStock and AccuFit stocks. Even with Savage's floating bolt head design and 3D bedding system, the Lumley lugs maximize the accuracy potential of these inherently accurate actions while also achieving an overall reduction in weight when compared to the mass-produced factory lug. CNC machined from Ti6AI4V aerospace titanium alloy with both faces then precision ground 100% parallel to one another. The Lumley design also includes features enabling alignment to the action by indexing the included custom fastener to the existing 6 o'clock slot in the face of the Savage action, or the lug can be pinned by utilizing the two radial 1/16" diameter holes (some gunsmithing required for both of these methods). Lumley has designed in a radii on both of the bottom edges of the lug for when the barreled action will be epoxy bedded into a stock.

Specifications:

• Material:  Ti6AI4V
• Thickness: ~0.181" (~4.6mm)

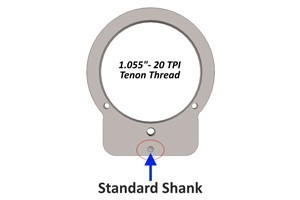

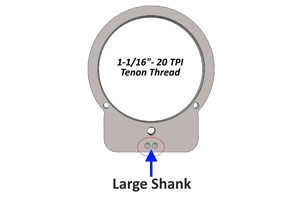

• Sizes:  Available for both standard shank (1.055" - 20 TPI) and large shank (1-1/16" - 20 TPI)Savage barrels
• Construction:  CNC machined with both faces precision ground
• Barrel Nut:  Compatible with all known factory and aftermarket options
• Center Pin:  Optional to install. Drilled and threaded for the Lumley M2.5x 0.8mm T8 torx head fastener
• Radial Pin:  Optional to install. Drilled for the Lumley custom 1/16" (1.58mm) splined head dowel pins
• Weight (Standard Shank): 0.377 oz (10.7 grams)
• Weight (Large Shank): 0.342 oz (9.7 grams)

Fitting guide:

Always ensure the rifle is unloaded and that the bolt has been removed prior to commencing. Minimum tools required are headspace gauges, a barrel vice, and a barrel nut wrench. The Lumley design enables the titanium lug to be fitted using three popular methods outlined below, head spacing is required after fitting regardless of which method is employed. If in doubt, we highly recommend a gunsmith undertake the work.

1. Fitting without using either of the indexing fasteners or radial pins:  this is the same configuration as the 2019+ Savage factory recoil lug which does not have a dimple. The Lumley Titanium Lug can be installed in the same manner. This is a drop-in fit to the AccuStock and AccuFit stocks. Aligning the lug to the receiver can be done in a number of ways. A recoil lug alignment tool (for lugs with straight sides) is both inexpensive and straightforward.
2. Fitting using the indexing fastener:  this will require a small relief cut made measuring approximately 0.047" (1.19mm) deep and 0.087" (2.21mm) long immediately behind the recoil lug into the aluminum spine of the stock to accommodate the cap head of the (included) 2.5 x 0.8mm threaded T8 torx screw. This is a basic one-minute task with a Dremel tool and a small grinding bit (alternatively this relief cut can be made using a vertical drill press or milling machine if either machine is available). The included torx head screw has been custom-made to be a snug fit into the mating slot of the Savage action, and for this reason, we don't recommend using a different fastener.
3. Fitting using the two radial pins:  this is a more permanent solution designed primarily for when barrels are going to be switched often. It requires access to a vertical milling machine, additional fixtures, and tooling. Lumley includes two 1/16" dowel pins with a splined retaining head on one end. These pins are designed to be cut to length to suit the depth of the corresponding holes to be drilled into the action face, or alternatively, any length 1/16" diameter dowel pin can be used. the drawing for drilling these two radial pin holes is detailed on this link.
